EURO-GEL-IT-FLEX C1 - EuroTLining

The coating of the EURO-GEL IT-FLEX C1 tube is realized by a molecular structure with microcells with excellent insulating power λ to 0° C < 0,036 W/m.K and a high resistance to vapor diffusion μ >15.000. With a fire classification Euroclass BL S2 Do UK. Class 1. USA Class 25/50.

EURO-GEL-IT-FLEX C1

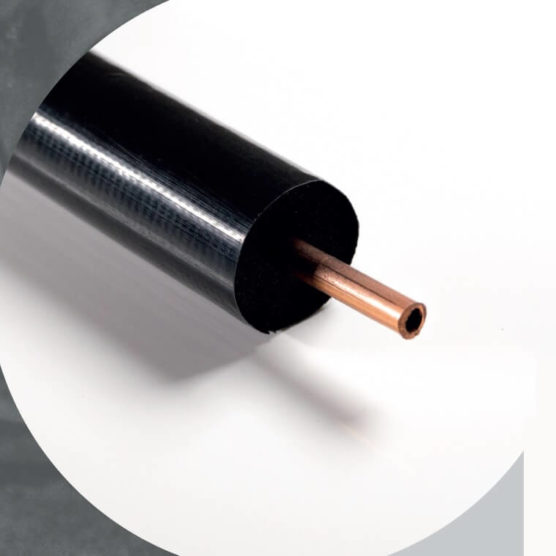

CU DHP 99,9 copper tube for air conditioning and refrigeration

6-10mm thermal insulation in extruded and expanded elastomer made in compliance with the EN 14304 standard and coated with an embossed LDPE film that protects against UV rays and mechanical stresses.
Compliant with UNI EN 12735-1
Fire reaction: Euroclass BL s2,d0 UK. Class 1. USA Class 25/50
Thermal conductivity : (λ=0,036 W/mK)
Vapour permeability coefficient : μ ≥ 15.000
